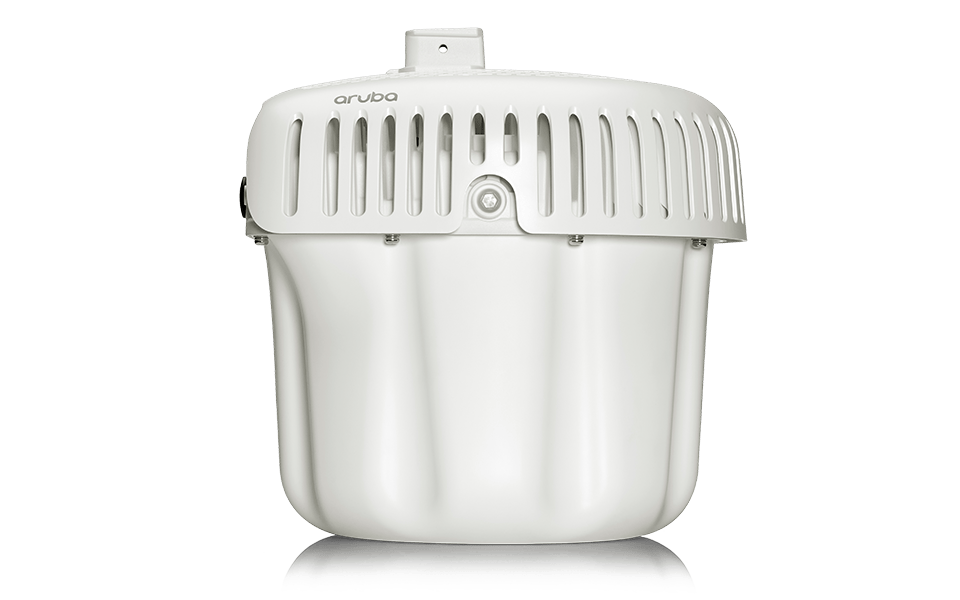

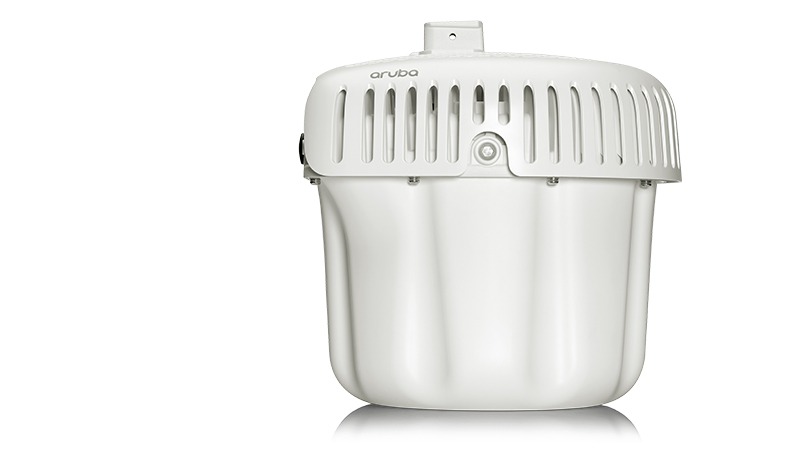

Aruba 580系列Outdoor Access Points

• AP-584
  • 四个用于外部天线操作的双波段NF连接器
  • 蓝牙/Zigbee广播的一个2.4GHz IoT NF连接器
  • 5dBi omni-directional antenna included
• AP-585
  • 内置的Omni方向天线（H和V极化）
  • 5GHz天线4.5dbi不相关的AVG（5.8dbi峰）
  • 2.4GHz Antennas 3.0dBi uncorrelated avg (4.4dBi peak)
  • Bluetooth Antenna 4.8dBi peak
• AP-587
  • Built in directional antennas (H, V, and +/-45 polarized)
  • 5Ghz Antennas 5.2dBi uncorrelated avg (6.6dBi peak)
  • 2.4Ghz Antennas 5.7dBi uncorrelated avg (5.8dBi peak)
  • Bluetooth Antenna 6.3dBi peak

• AP类型：室外硬化，Wi-Fi 6双收音机，5GHz和2.4GHz 802.11ax 4x4 mimo
• 5GHz radio: Four spatial stream Single User (SU) MIMO for up to 2.4Gbps wireless data rate with individual 4SS HE80 (or 2SS HE160) 802.11ax client devices, or with four 1SS or two 2SS HE80 802.11ax MU-MIMO capable client devices simultaneously
• 2.4GHz radio: Four spatial stream Single User (SU) MIMO for up to 1,150Mbps wireless data rate with individual 4SS HE40 802.11ax client devices or with two 2SS HE40 802.11ax MU-MIMO capable client devices simultaneously
• 支持for up to 1,024 associated client devices per radio (typical recommended limit for active outdoor clients is 100-200 depending on distance), and up to 16 BSSIDs per radio
• 支持ed frequency bands (country-specific restrictions apply):
  • 2.400至2.4835GHz
  • 5.150 to 5.250GHz
  • 5.250至5.350GHz
  • 5.470 to 5.725GHz
  • 5.725 to 5.850GHz
• Available channels: Dependent on configured regulatory domain
• Dynamic frequency selection (DFS) optimizes the use of available RF spectrum
• 支持ed radio technologies:
  • 802.11b: Direct-sequence spread-spectrum (DSSS)
  • 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM)
  • 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 37 resource units (for an 80MHz channel)
• 支持ed modulation types:
  • 802.11b：bpsk，qpsk，cck
  • 802.11a/g/n：BPSK，QPSK，16-QAM，64-QAM，256-QAM（专有扩展）
  • 802.11ac：BPSK，QPSK，16-QAM，64-QAM，256-QAM，1024-QAM（专有扩展）
  • 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
• 802.11n high-throughput (HT) support: HT20/40
• 802.11ac非常高吞吐量（VHT）支持：VHT20/40/80/160
• 802.11ax high efficiency (HE) support: HE20/40/80/160
• 支持ed data rates (Mbps):
  • 802.11b: 1, 2, 5.5, 11
  • 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54
  • 802.11N：6.5至600（MCS0至MCS31，HT20至HT40），800与256-QAM
  • 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT160), 2,166 with 1024-QAM
  • 802.11AX（2.4GHz）：3.6至1,147（MCS0到MCS11，NSS = 1至4，HE20至HE40）
  • 802.11AX（5GHz）：3.6至2,402（MCS0到MCS11，NSS = 1至4，HE20至HE160）
• 802.11n/ac packet aggregation: A-MPDU, A-MSDU
• Transmit power: Configurable in increments of 0.5 dBm
• Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements):
  • 2.4 GHz band: +29 dBm (23dBm per chain)
  • 5 GHz band: +28 dBm (22 dBm per chain)
  • Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain.

Advanced Cellular Coexistence (ACC) minimizes the impact of interference from cellular networks

• Maximum ratio combining (MRC) for improved receiver performance
• Cyclic delay/shift diversity (CDD/CSD) for improved downlink RF performance
• Space-time block coding (STBC) for increased range and improved reception
• Low-density parity check (LDPC) for high-efficiency error correction and increased throughput
• Transmit beam-forming (TxBF) for increased signal reliability and range
• 802.11ax Target Wait Time (TWT) to support low-power client devices
• Advanced IoT Existence (AIC) allows for concurrent operation of the IoT and 2.4Ghz radios without issue

• 有线网络接口（E0）
  • 100/1000/2500/5000Base-T以太网
  • 5Gbps Smart Rate: NBase-T, 802.3bz
  • POE PD支持E0
  • IEEE/802.3az support
  • 支持for jumbo frames (MTU up to 9,216 bytes)
• 有线网络接口(E1)
  • 10GBASE-R SFP+端口
  • IEEE/802.3az support (as applicable)
  • 支持for jumbo frames (up to 9,216 bytes)
  • 1 x sfp+笼子
  • When used in operation it is expected that this is the primary uplink port
  • Only recommended industrial temperature SFP/SFP+ modules should be used for optimal performance
• Wired network interface (E2)
  • 10/100/1000BASET以太网
  • IEEE/802.3az support (as applicable)
  • 支持for jumbo frames (up to 9,216 bytes)
  • 支持for PoE PSE of 802.3af (may be able to reach 802.3at PSE with IPM policy if needed depending on temperature and load)
• 交流电源界面：110-240V（需要AP-AC-MLX电源连接器套件）
• Bluetooth (BT5.0) and Zigbee (802.15.4) radio
  • BT: up to 8dBm transmit power (class 2) and -98dBm receive sensitivity (125kbps)
  • Zigbee：高达8dBm发射功率，-96DBM接收灵敏度
• Visual indictors (multi-color LED): for System and Radio status
• Reset button: factory reset, LED mode control (normal/off)
• USB-C console interface
• Shielded Twisted Pair (STP) Ethernet cable should be used on all Ethernet interfaces for proper surge protection

• AP支持直接的交流电源和对以太网的力量（POE；仅在端口E0上）
• 当AC和POE功率源都可用时，交流电源优先于POE
• Power sources are sold separately; see the ordering Information section below for details
• See below conditions for each power configuration:
  • 由交流供电时,美联社将没有重新运作strictions, including 802.3af/at support (with upper thermal limitations).* With IPM enabled, the AP will adjust power requirements to meet requirements, and will reduce according to established IPM policy
  • 当由802.3 6 bt类,美联社将歌剧te without restriction, limited to 802.3af PSE support.* With IPM enabled, the AP will adjust power requirements to meet requirements, and will reduce according to established IPM policy
  • When powered by 802.3bt Class 5 with LLDP, full function but no PSE support*
  • When powered by 802.3at, AP will reduce both radios to 2 chains only, and will disable PSE out*
  • 当由802.3AF提供动力时，AP将启动，但不会启用任何无线电，无论IPM设置如何。
    • With IPM enabled, the AP will adjust power requirements to meet requirements, and will reduce power as necessary according to the established IPM policy
• Maximum (worst-case) power consumption
  • AC powered: 71W (802.3af/at*)
  • POE驱动（802.3BT 6级）：49.5W（仅802.3AF PSE）
  • POE Powered（802.3Bt class with LLDP）：35.5W（无PSE）
  • POE powered (802.3at, IPM disabled): 25.5W (2 chain @ 2.4Ghz, 2 chains @ 5Ghz, no PSE)
• 在空闲模式下的最大（最坏）功耗：9.2W（POE）或10.8W（AC）
• 深度睡眠模式下的最大（最坏）功耗：3.0W（POE）或4.4W（AC）

*在某些功率配置和条件下，802.3AT可能不支持完整的30W

• AP-OUT-MNT-V1A – Long arm wall or pole mounting bracket
• AP-270-MNT-H1 – Single-tilt mounting bracket for wall or ceiling
• AP-270-MNT-H2 - 冲洗天花板或壁挂支架
• AP-270-MNT-H3 – Dual-tilt mounting bracket for wall or ceiling

• AP-584
  • 尺寸/重量（仅AP-584单位）：
    • 324mm (W) x 312mm (D) x 244mm (H) / 12.6” (W) x 12.3” (D) x 9.6” (H)
    • 5.52 kg / 11.5 lbs
  • Dimensions/weight (AP-584 shipping pkg, no mount):
    • 410mm (W) x 322mm (D) x 433mm (H) / 16.1” (W) x 12.7” (D) x 17” (H)
    • 7.56 kg / 16.8 lbs
• AP-585
  • Dimensions/weight (AP-585 unit only):
    • 324mm（w）x 313mm（d）x 320mm（h） / 12.6“（w）x 12.3”（d）x 12.7”（h）
    • 5.24 kg / 11.5 lbs
  • Dimensions/weight (AP-585 shipping pkg, no mount):
    • 431mm（w）x 415mm（d）x 442mm（h） / 17“（w）x 16.3”（d）x 17.4”（h）
    • 7.81 kg / 17.2 lbs
• AP-587
  • Dimensions/weight (AP-587 unit only):
    • 302mm（w）x 300mm（d）x 174mm（h） / 11.9“（w）x 11.8”（d）x 6.9”（h）
    • 4.51 kg / 9.9 lbs
  • Dimensions/weight (AP-587 shipping pkg, no mount):
    • 385mm (W) x 272mm (D) x 433mm (H) / 15.2” (W) x 10.7” (D) x 17” (H)
    • 6.03 kg / 13.3磅

• 运行条件
  • Temperature: -40°C to +65°C / -40°F to +149°F with full solar loading
  • Humidity: 5% to 93% non-condensing internal
  • Rated for operation in all weather conditions
• Storage and transportation conditions
  • Temperature: -40°C to +70°C / -40°F to +158°F
• Operating Altitude: 3,000 m
• 水和灰尘：IP66/67
• Salt Tolerance: Test to ASTM B117-07A Salt Spray 200hrs

• FCC/ISED
• CE标记
• 红色指令2014/53/eu
• EMC指令2014/30/EU
• Low Voltage Directive 2014/35/EU
• UL/IEC/EN 60950-1
• UL/IEC/EN 62368-1
• IEC 60950-22
• IEC/EN60601-1-2
• EN 50155
• For more country-specific regulatory information and approvals, please see your Aruba representative.

• AP-584: APEX0584
• AP-585：APEX0585
• AP-587：APEX0587

• Wi-Fi Alliance
• 蓝牙信号
• Ethernet Alliance (E0, PoE PD device, class 6; E2, PoE PSE device, class 3)

• ArubaOS and Aruba InstantOS 8.10.0.0

• Limited lifetime warranty
