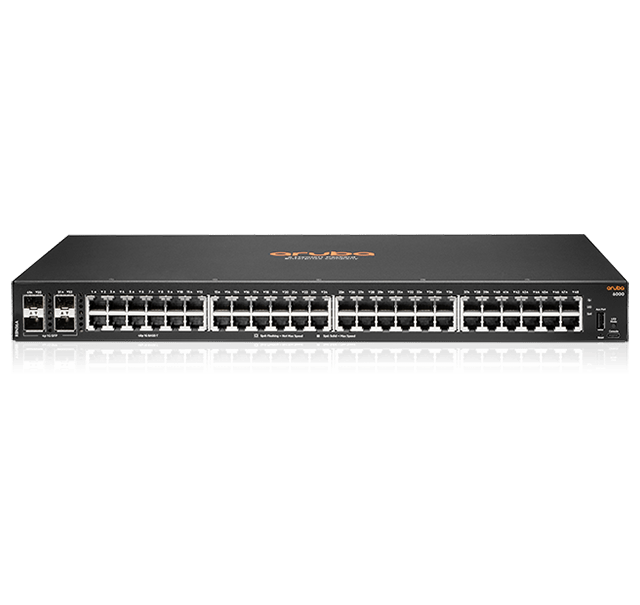

Aruba CX 6000 Switch Series
This Layer 2 Ethernet access switch series brings simple, reliable, and cost-effective enterprise-class connectivity to the edge of your network.
Just right for branch offices, mid-market enterprises, and SMBs
The CX 6000 switches bring simplicity, reliability, and value to the access layer.
Simple, secure, and reliable
Simple, secure, and reliable
This enterprise-class Layer 2 switch series is ready for quick deployment with plenty of PoE, speed, and robust security features to safely connect and power your access points, client devices, and IoT.
Right size for your business
Right size for your business
Deploy the number of Ethernet ports and PoE power that’s best for you and your budget with plug and play 12-, 24-, and 48-port Ethernet models with up to 370W PoE.
Manage it your way
Manage it your way
No matter how big or small your network management needs, the CX 6000 has you covered with choices that include easy-to-use Web GUI, CLI, Aruba NetEdit, and Aruba Central (available soon) for single pane of glass management across your enterprise network.
Ideal for branch offices, mid-market enterprises, and SMB networks
Enterprise-class Ethernet Layer 2 connectivity
This high-performance Layer 2 switch with support for ACLs, robust QoS, static routing, and IPv6 is ready to connect users and devices.
PoE and built-in uplinks
Convenient built-in 1GbE uplinks and up to 370W of Class 4 PoE for support of IoT devices and wireless access points.
Quiet and compact 12 port
Fanless 12-port model with four 1GbE uplinks and 139W of PoE is ready for quiet deployment in space constrained areas.
Management flexibility
The fully programmable CX 6000 series supports a choice of management, including cloud-based and on-prem Central (support coming soon), NetEdit, CLI, switch Web GUI, and programmability with AOS-CX operating system and REST APIs.
Built-in security
Integrated trusted platform module (TPM) ensures boot process starts with trusted AOS-CX switches.
Lasting value
带来持久的价值和简化了所有权no switch software licensing and Limited Lifetime Warranty.
Details and specifications for the Aruba CX 6000 Series
Specifications
-
Performance - System Switching Capacity: Up to 104 Gbps
- System Throughput Capacity: Up to 77.3 Mpps
Models - 阿鲁巴岛6000年48 g四班PoE 4SFP 370W Switch (R8N85A)
- 48x ports 10/100/1000Base-T ports
- 4x 1G SFP ports
- Internal (fixed) power supply, fixed fans
- Up to 370W of Class 4 PoE
- 尺寸:4.39厘米x (H)(W) 44.2 cm x (D) 30.48 cm (1.73" x 17.4" x 12.0")
- Weight: 5.02 kg (11.07 lbs)
- Aruba 6000 48G 4SFP Switch (R8N86A)
- 48x ports 10/100/1000Base-T ports
- 4x 1G SFP ports
- Internal (fixed) power supply, fixed fans
- 尺寸:4.39厘米x (H)(W) 44.2 cm x (D) 24.74 cm (1.73" x 17.4" x 9.74")
- Weight: 3.42 kg (7.54 lbs)
- Aruba 6000 24G Class4 PoE 4SFP 370W Switch (R8N87A)
- 24x ports 10/100/1000Base-T ports
- 4x 1G SFP ports
- Internal (fixed) power supply, fixed fans
- Up to 370W of Class 4 PoE
- 尺寸:4.39厘米x (H)(W) 44.2 cm x (D) 26.82 cm (1.73" x 17.4" x 10.56")
- Weight: 4.19kg (9.24 lbs)
- Aruba 6000 24G 4SFP Switch (R8N88A)
- 24x ports 10/100/1000Base-T ports
- 4x 1G SFP ports
- Internal (fixed) power supply, fixed fans
- 尺寸:4.39厘米x (H)(W) 44.2 cm x (D) 20.12 cm (1.73" x 17.4" x 7.92")
- Weight: 2.62 kg (5.78 lbs)
- Aruba 6000 12G Class4 PoE 2G/2SFP 139W Switch (R8N89A)
- 12x ports 10/100/1000Base-T ports
- 2x 1G SFP ports
- 2x 1GbE ports
- Internal (fixed) power supply, fanless
- Up to 139W of Class 4 PoE
- 尺寸:4.39厘米x (H)(W) 25.4 cm x (D) 25.5 cm (1.73" x 10.0" x 10.04")
- Weight: 2.78 kg (6.13 lbs)
Management ports - 1x USB-C console port
- 1x USB Type-A host port
POE power - 370W of Class 4: R8N85A, R8N87A
- 139W of Class 4: R8N89A
Mounting - Mounts in an EIA-standard 19 in. Telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included.
Environmental - Operating temperature: 32°F to 113°F (0°C to 45°C) up to 5,000 ft. Derate -1°C degree C for every 1,000 ft. from 5,000 ft. to 10,000 ft.
- Operating Relative Humidity: 15% to 95% @ 104°F (40°C) noncondensing
- Non-Operating: -40°F to 158°F (-40°C to 70°C) up to 15,000 ft.
- Non-Operating Storage relative humidity: 15% to 90% @ 149°F (65°C) noncondensing
- Max. Operating Altitude: 10,000 feet (3.04 km)
- Max Non-operating Altitude: 15,000 feet (4.6 km)
- Acoustics:
- Sound Power (LWAd) range: 0 – 4.3 Bel
- Sound Pressure (LpAm) (Bystander) range: 0 - 29.8 dB
- Primary airflow: Side to side (JL679A fanless)
-
Electrical characteristics - Frequency range: 50-60 Hz
- AC Voltage: 100-240 volts
- Maximum current range: 4.91A – 0.5A
Safety - UL 60950-1; IEC 60950-1;
- EN 60950-1; CAN/CSA-C22.2 No. 60950-1;
- EN 60825-1; UL 62368-1 Ed. 2;
- IEC 62368-1 Ed. 2; EN 62368-1:2014
Emissions - VCCI-CISPR 32, Class A;
- CNS 13438;
- ICES-003 Issue 6 Class A;
- FCC CFR 47 Part 15, Class A;
- EN 55032: 2015 +AC:2016 /CISPR-32, Class A
Immunity - 泛型:CISPR 24 / CISPR 35
- EN: EN 55024:2010 / EN 55035:2017
- ESD: IEC 61000-4-2
- Radiated: IEC 61000-4-3
- EFT/Burst: IEC 61000-4-4
- Surge: IEC 61000-4-5
- Conducted Immunity: IEC 61000-4-6
- Power frequency magnetic field: IEC 61000-4-8
- Voltage dips and interruptions: IEC 61000-4-11
- Harmonics: IEC/EN 61000-3-2
- Flicker: IEC/EN 61000-3-3
Additional Specifications - For complete specifications, please see thedata sheet.
Aruba is a Leader in the 2021 Gartner®Magic Quadrant™for the Wired and Wireless LAN Access Infrastructure
Related products
Find information on Aruba products that complement the Aruba CX 6000 or another solution that might better suit your needs.
Aruba Central
Designed for campus, branch, remote, and data center networks, Aruba Central delivers full-service AI insights, security, and unified infrastructure management from a cloud-native microservices architecture
Aruba CX 6100 Switch Series
Layer 2 switch series with built-in PoE, fast 10GbE uplinks, and robust security features like ACLs and static routing to help protect your network.

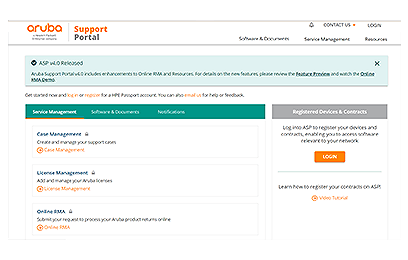

Support and services
