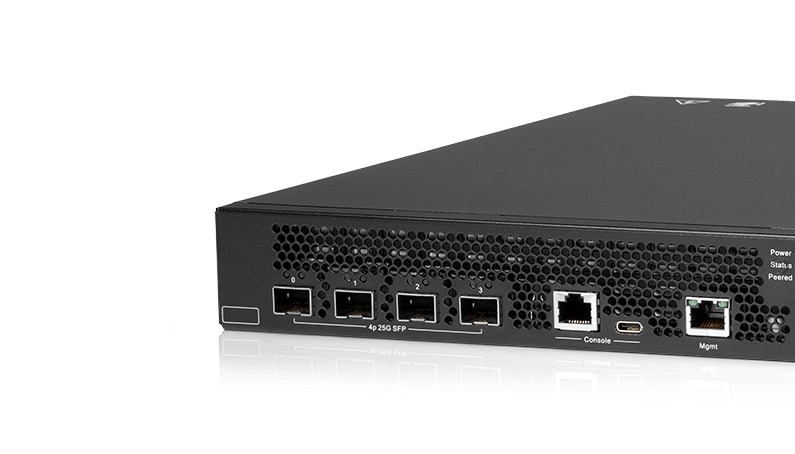

Aruba 9200 Series Campus Gateways
Deliver enhanced Wi-Fi scalability and security to the meet enterprise networking demands at the Edge – with Aruba 9200 Series Campus Gateways.
Meet Aruba’s next-generation gateway
Engineered for mission-critical environments, the Aruba 9200 Series delivers high performance, seamless roaming, consistent policy enforcement, and always-on connectivity – even during upgrades.
Enterprise-class performance
Enterprise-class performance
Aruba 9200 Series Campus Gateways are modern Wi-Fi appliances that scale to support up to 2,048 APs and 32K devices. Delivers 24x7 reliability, live upgrades, and always-on connectivity. Zero touch provisioning reduces the need for on-site IT support.
Investment protection
Investment protection
No more overprovisioning or frequent hardware refreshes. Enterprises benefit from tier-based pricing to unlock more capacity when needed. 9200 Series Campus Gateways are also available with HPE Greenlake as a Service.
Powerful security enforcement
Powerful security enforcement
Ensure consistent policy enforcement via dynamic segmentation. Granular rules can be defined for any user, application, or device – even IoT. Streamline management with unified policies across wired and wireless networks.
Campus gateways to meet enterprise requirements at the Edge
Scalable for medium and large enterprises
Highly-scalable appliance for Wi-Fi performance at the Edge – up to 2,048 APs and 32K devices.
Live upgrades
Always on support to provide business continuity in mission-critical environments.
Tier-based licensing
Investment protection with silver and gold add-on licenses to unlock more capacity when needed to meet growing demands – without replacing your appliance.
L2和L3漫游ing
Supports tunneling so that two disparate networks can connect directly to one another, for seamless L2/L3 roaming.
Redundancy and clustering
Can be deployed with N+1 or NxN redundancy for performance and scale.
IoT ready
Integrated device profiling improves IoT visibility and works with ClearPass Policy Manager.
Details and specifications for the Aruba 9200 Series Gateways
Specifications
-
Performance and capacity Base Hardware w/ Silver License w/ Gold License Maximum campus or remote access points 512 1,024 2,048 Maximum concurrent users/devices 16,384 24日576 32,768 Maximum VLANs 4,096 4,096 4,096 Active firewall sessions 2,015,291 2,015,291 2,015,291 Concurrent GRE tunnels 8,192 16,384 32,768 Concurrent IPsec sessions 16,384 24日576 32,768 Concurrent SSL sessions 8,192 8,192 8,192 Concurrent tunneled ports 8,192 12,288 16,384 Firewall throughput (Gbps) 20 30 40 Wired bridged throughput (Gbps) 20 30 40 Encrypted throughput GRE (Gbps) 20 30 40 Encrypted throughput 3DES (Gbps) 20 27 29 Encrypted throughput AES-CBC-128 (Gbps) 20 30 38 Encrypted throughput AES-CBC-256 (Gbps) 20 30 39 Encrypted throughput AES-CCM (Gbps) 20 28 30 Encrypted throughput AES-GCM-128 (Gbps) 20 30 40 Encrypted throughput AES-GCM-256 (Gbps) 20 30 40 Interfaces and indicators Form factor 1 RU Interface 4x SFP28 Out of band management port 1x RJ45 Console port USB-C, RJ45 USB 3.0 Type-A 2 LCD display 1 Power LED Yes Status LED Yes Peered LED (reserved for future use) Yes Expansion slot (reserved for future use) 1 电源插槽 1 + redundant Fan trays 5 Physical Dimensions (HxWxD) 1.73” x 17.40” x 15.60”
(4.4 cm x 44.2 cm x 39.6 cm)Weight 18.08 lbs (8.2 kg) MTBF (Hours at 25C with Fans and PSU) 185,301 Environmental Operating temperature 0 °C to 40 °C (32 °F to 104 °F) Storage temperature -40°C到70°C(-40°F(158°F) Humidity/Storage humidity 10% to 90% (RH)/10% to 95% (RH), non-condensing Operating altitude 10000英尺 Acoustic noise1 65.2 dBA (Typ) Maximum heat dissipation (BTU/hour) 648 BTU /人力资源 Maximum power consumption 190W Power source 550-watt power supply 1Sound power per ETSI 300 753 in accordance with ISO 7779
Power supply certifications Input voltage range 100 VAC to 240 VAC Output voltage 12V Input frequency 50 - 60赫兹 AC line input current (steady state) 7.1A Operating temperature 0 °C to 55 °C Cooling Internal fan (air flow rear to front) Weight 0.8 kg Regulatory and safety compliance Minimum Supported Software Version 8.10 Safety Certifications EN 62368-1, Ed.2:2014
UL 62368-1, 2nd Edition
CAN/CSA C22.2 No. 62368-1-14Electromagnetic Emissions Certifications FCC Part 15 Class B
CISPR32 Class B
EN55032 Class B
ICES-003 Class B
EN 61000-3-2
EN 61000-3-3
EN55035
KN32 Class B /KN35
CNS13438
AS/NZS CISPR32 Class B
VCCI Class BTelco Common Language Equipment Identifier (CLEI) Code Service and warranty information Hardware: 1-year parts/ labor, can be extended with support contract Mobility Controller Software: 90 days, can be extended with support contract
