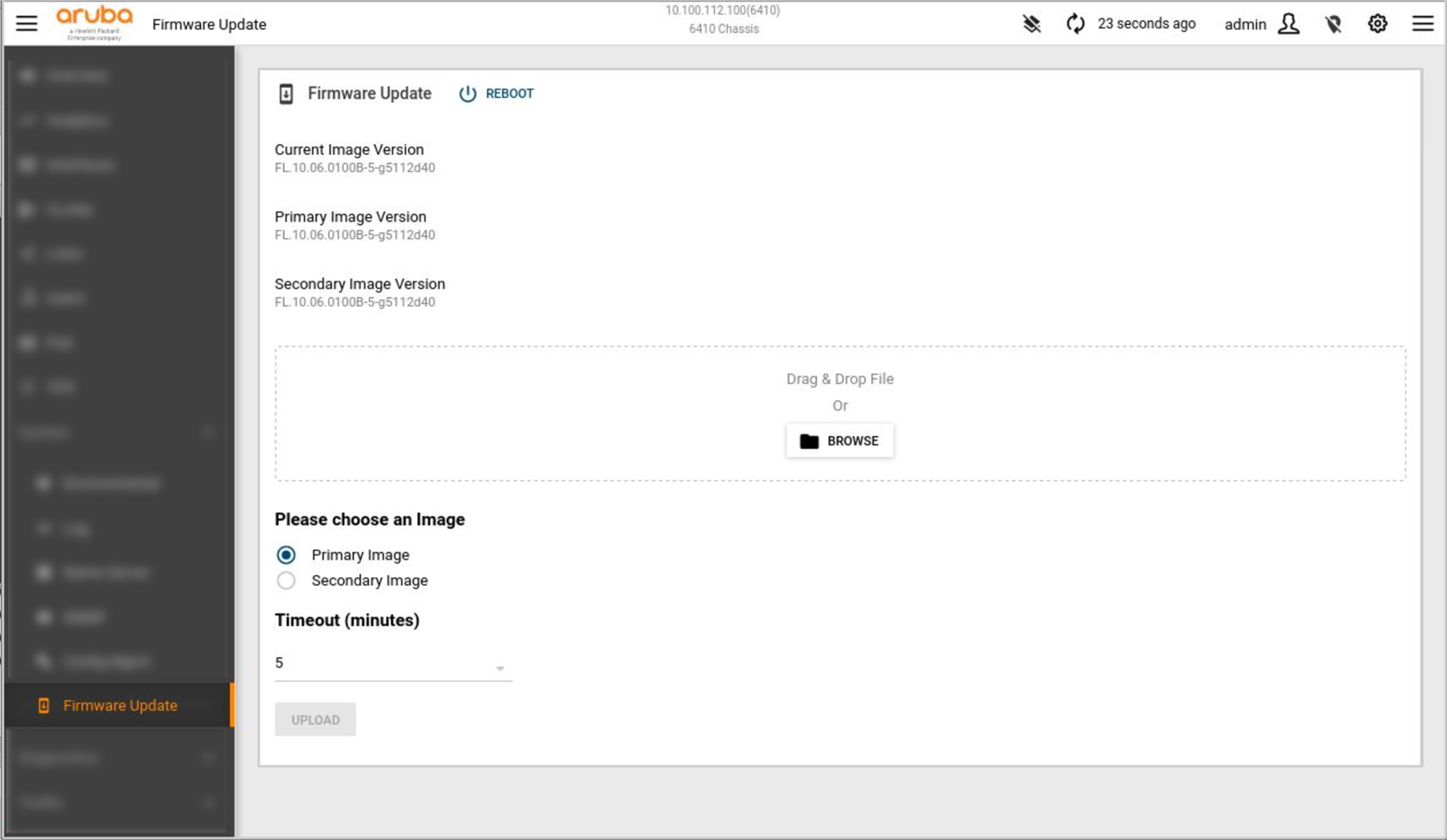

Firmware Update page
From the Firmware Update page, you can see the current, primary, and secondary firmware versions and you can upload firmware files.
Uploads are performed through the REST interface.
After the update starts, it cannot be canceled.
Prior to updating, a message is displayed:Are you sure you want to update the primary/secondary image?
After the firmware upload is completed, a new dialog box is displayed that contains the message:New firmware has been successfully uploaded. Verifying and writing system firmware...
You may need to pressRebooton the page or select the Reboot item in the top right System menu for the image to take effect.
SelectingRebootreboots the switch.
After you selectReboot, you cannot cancel the request.

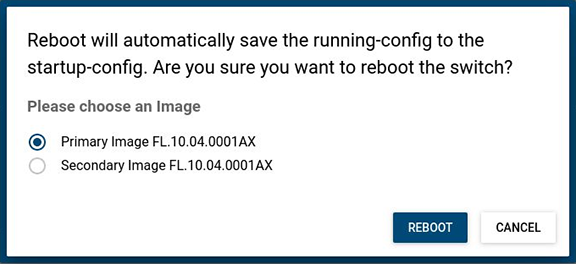

在选择Reboot, you will be prompted to verify that you want to reboot the switch and to choose an image to use when rebooting.
For example:
