DHCPv4 relay scenario 3

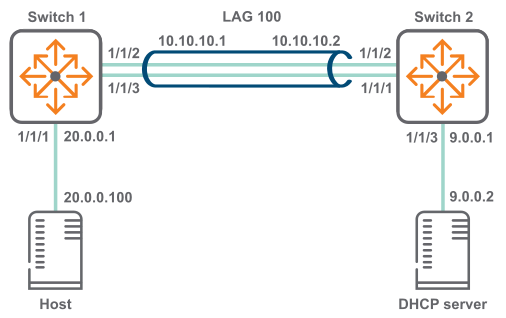

In this scenario, host on switch 1 reaches the DHCP server on switch two via a LAG. The physical topology of the network looks like this:

Procedure
  1. On switch 1:
    1. Create LAG100and assign an IP address to it.
      switch#configswitch(config)#接口延迟100switch(config-lag-if)#ip address 10.0.10.1/24switch(config-lag-if)#lacp mode activeswitch(config-lag-if)#exitswitch(config)#
    2. Assign an IP address to interface1/1/1and a an IP helper address to reach the DHCP server.
      switch(config)#interface 1/1/1switch(config-if)#ip address 20.0.0.1/8switch(config-if)#ip helper-address 9.0.0.2
    3. 指定的接口1/1/2and1/1/3to LAG100
      switch(config-if)#interface 1/1/2switch(config-if)#滞后100switch(config-if)#interface 1/1/3switch(config-if)#滞后100switch(config-if)#exitswitch(config)#
    4. Create a route between10.0.10.2and9.0.0.0.
      switch(config)#ip route 9.0.0.0/24 10.0.10.2
  2. On switch 2:
    1. Create LAG100and assign an IP address to it.
      switch#configswitch(config)#接口延迟100switch(config-lag-if)#ip address 10.0.10.2/24switch(config-lag-if)#lacp mode activeswitch(config-lag-if)#exitswitch(config)#
    2. 指定的接口1/1/1and1/1/2to LAG100
      switch(config-if)#interface 1/1/2switch(config-if)#滞后100switch(config-if)#interface 1/1/3switch(config-if)#滞后100switch(config-if)#exitswitch(config)#
    3. Assign an IP address to interface1/1/3.
      switch(config)#interface 1/1/3switch(config-if)#ip address 9.0.0.1/24
    4. Create a route between20.0.0.0and10.0.10.1.
      switch(config)#ip route 20.0.0.0/8 10.0.10.1
