RPVST+ scenario

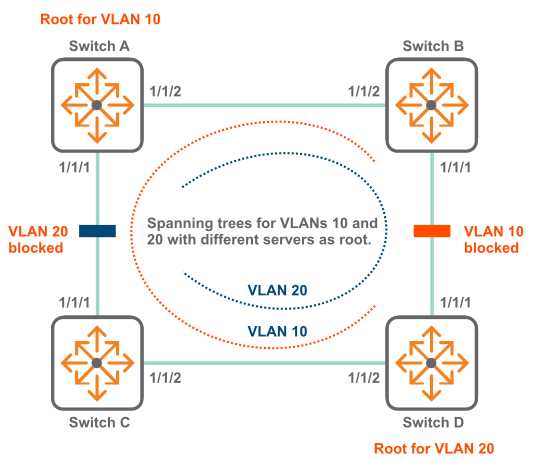

In this scenario, four switches are interconnected. VLANs 10 and 20 are defined on all switches, causing a network loop.
消除the loop, RPVST+ is enabled and switch A and B are defined as high-priority for VLAN 10 and 20 respectively. RPVST+ then eliminates the loop by assigning switch A as the root for VLAN 10 and switch B designated as the root for VLAN 20, and blocking access on one of the links.
On the 6400 Switch Series, interface identification differs.
Procedure
- Configure switch A.
- Configure switch B and switch C with the same settings.
- Configure switch D.
