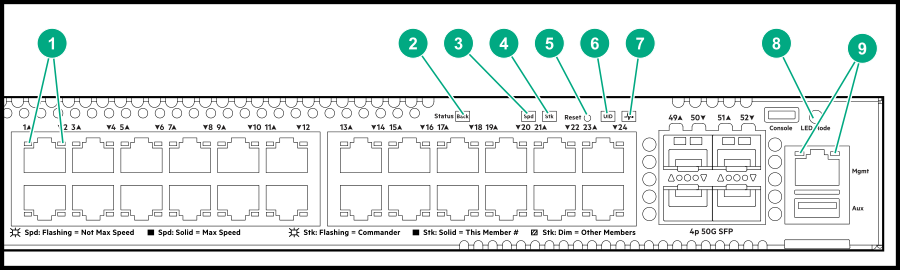

| Back LED |
Status of modular components installed in the back of the chassis (not applicable for 6200F/6300F switches |
On - Green |
Normal |
| Slow Flash - Amber |
Fault in one of the modules in the back of the chassis |
| PoE LED |
Indicates Port LEDs are showing PoE information (not applicable for non PoE switches) |
Off |
PoE mode not selected |
| On - Green |
PoE mode selected |
| Slow Flash - Amber |
Hardware failure PoE enabled port, PoE mode not selected |
| On - Amber |
Hardware failure PoE enabled port, PoE mode selected |
| Spd LED |
Indicates Port LEDs are showing speed information |
Off |
Speed mode not selected |
| On - Green |
Speed mode selected |
| Not Implemented |
No fault defined |
| Stk LED |
Indicates Port LEDs are showing stacking mode information |
Off |
Stacking mode not selected |
| On - Green |
Stacking mode selected |
| On - Amber |
A port has a stacking failure. Stacking mode selected |
| Slow flash Amber |
A port has a stacking failure. Stacking mode not selected |
| UID LED |
User-configurable LED |
Off |
User defined the located LED : OFF |
| On/Flash Blue (for 30 min) |
User defined the locator LED: On/Flash |
| Global Status Indicator LED |
Overall status of the product |
Flash - Green |
Self-test in progress during UBOOT, SVOS and ArubaOS-CV |
| On - Green |
Successfully initialized ArubaOS-CX |
| Flash - Amber |
Recoverable faults (e.g. fans, PSU fault) |
| On - Amber |
Critical faults (e.g. exceed temperature limit) |
| OOBM Status Indicator LED |
Status of OOBM Link connectivity |
Off |
OOBM port is not connected, no link established |
| Half Bright - Green |
OOBM port is enabled and established link with partner |
| On - Green |
Experiencing high bandwidth utilization |
| Activity Flicker - Green |
% of the time that the LED light up is roughly proportional to the % of full bandwidth utilization of the port |
* Press the Mode Select button to switch between User(default), PoE, Spd, or Stk Mode. |
