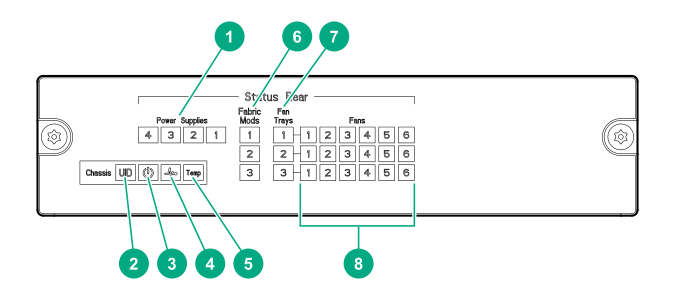

Rear panel LEDs
LED |
|
|---|---|
1 |
Power supply status (1 2 3) |
2 |
单位识别(UID) |
3 |
Chassis power LED |
4 |
Chassis health LED |
5 |
Chassis temperature status (Temp) |
6 |
Fabric modules |
7 |
Fan tray status (1 2 3) |
8 |
Fan status each fan tray (1 2 3 4 5 6) |
没有显示* |
Fan health (Health LED) (*For a given fan module, this LED appears to the right of the module release lever.) |
没有显示* * |
Fabric Module Health (Health Icon) (**To view this LED for a given fabric module (1 through 3), remove the first (leftmost) fan module from the fan tray slot in which the fabric module is installed.) |
