One virtual device

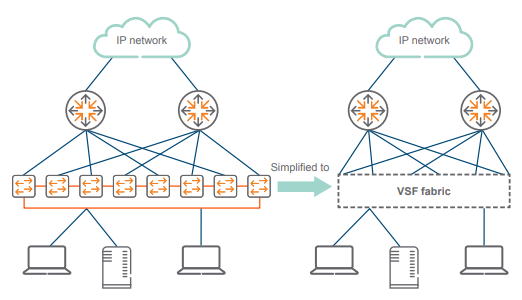

Once the VSF stack is formed, all interconnected switches operate as a single virtual switch with a single control plane. All interfaces of all switches in the stack are available for configuration and management.
switch#show vsfMAC Address : 08:97:34:b0:0e:00 Secondary : 2 Topology : Ring Status : No Split Split Detection Method : None Mbr MAC Address Type Status ID --- ------------------- -------------- ----------------- 1 08:97:34:b0:0e:00 JL666A Master 2 08:97:34:b1:43:00 JL665A Standby 3 08:97:34:b7:cc:00 JL663A Member 4 08:97:34:b6:42:00 JL662A Member
Interfaces will be numbered as noted in the following table.
| Name | Member Number | Slot | Port |
|---|---|---|---|
1/1/1 |
1 |
1 |
1 |
2/1/14 |
2 |
1 |
14 |
8/1/12 |
8 |
1 |
12 |
Slot number is always fixed as 1. All interfaces are available for configuration.
switch#show interfaces brief---------------------------------------------------------------------------------- Port Native Mode Type Enabled Status Reason Speed VLAN (Mb/s) ---------------------------------------------------------------------------------- 1/1/1 10 access SFP+DA3 yes up 10000 1/1/2 -- routed -- no down No XCVR installed -- 1/1/3 -- routed -- no down No XCVR installed -- 1/1/4 -- routed -- no down No XCVR installed -- 1/1/5 -- routed -- no down No XCVR installed -- 1/1/6 -- routed -- no down No XCVR installed -- ... 1/1/33 -- routed -- no down No XCVR installed -- 1/1/34 -- routed -- no down No XCVR installed -- 1/1/35 -- routed -- no down No XCVR installed -- 1/1/36 -- routed -- no down No XCVR installed -- 2/1/1 10 access SFP+DA3 yes up 10000 2/1/2 -- routed -- no down No XCVR installed -- 2/1/3 -- routed -- no down No XCVR installed -- 2/1/4 -- routed -- no down No XCVR installed -- ... 2/1/35 -- routed -- no down No XCVR installed -- 2/1/36 -- routed -- no down No XCVR installed --
A single control plane operates for the entire VSF stack.
switch# show run Current configuration: ! !Version ArubaOS-CX FL.10.04.0001AQ !export-password: default cli-session timeout 0 ! ! ! ! ssh server vrf default ssh server vrf mgmt ! ! ! ! ! vlan 1 spanning-tree interface mgmt no shutdown ip dhcp interface1/1/1no shutdown no routing vlan access 1 interface1/1/2no shutdown no routing vlan access 1 interface1/1/3no shutdown no routing vlan access 1 interface1/1/4no shutdown no routing vlan access 1 interface1/1/5no shutdown no routing vlan access 1 interface1/1/6没有关机没有路由vlan访问……数据ce2/1/1no shutdown no routing vlan access interface2/1/2no shutdown no routing vlan access 1 interface2/1/3no shutdown no routing vlan access 1 interface2/1/4no shutdown no routing vlan access 1 interface2/1/5没有关机没有路由vlan访问……vsf secondary-member 2 vsf member 1 type jl668a link 11/1/27link 21/1/28vsf member 2 type jl668a link 12/1/27link 22/1/28
As shown in this configuration, interfaces of all member switches can be configured from the Master.
Once a stack is deployed, the stack configuration is sticky. The user can safely remove all other configurations with the commanderase startup-configurationwithout disturbing the stack configurations. To remove all configurations, including the stacking configurations, use the commanderase all zeroize, where all members of the stack will be reset to factory defaults
