An example configuration of loop protect over VSX

The following figure is a simplified configuration. Most network configurations will have more than one downstream switch.

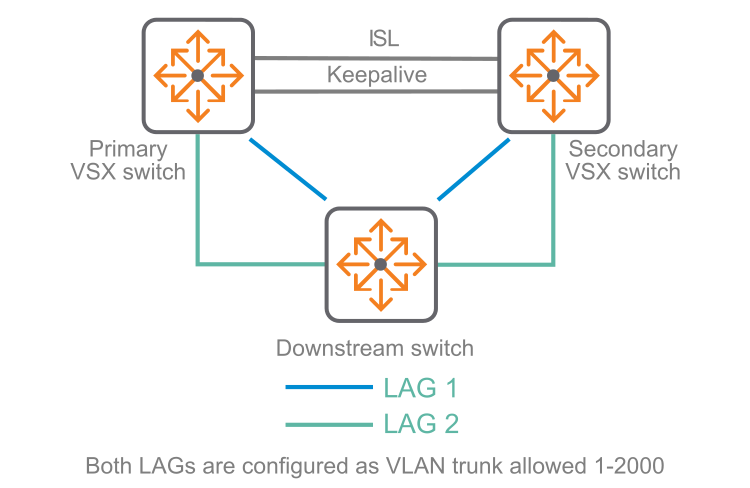

Figure 1Example of Loop Protect Over VSX

The following sections provide information about the configurations on the switches before and after configuring the loop protect feature.
