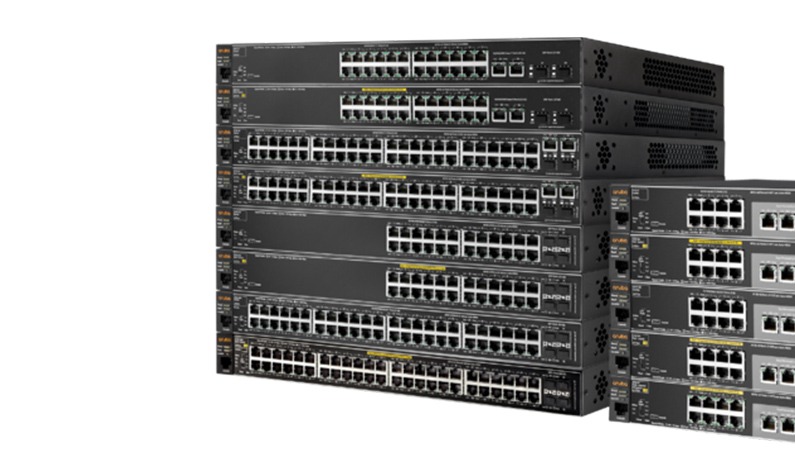

Aruba 2530 Switch系列

This Layer 2 switch series provides reliable, secure, and simple Ethernet access for enterprises, small and medium-sized businesses, and branch office networks.

Contact Sales

Reliable Layer 2 access

This fully managed Layer 2 access switch series is ideal for enterprises, small and medium-sized businesses, and brand office networks.

适合您的网络的尺寸

适合您的网络的尺寸

使用可选POE的插头和播放8-，24-和48端口的以太网模型，部署最适合您和预算的端口和POE功率的数量。

切换考虑
简单部署

简单部署

With Zero-Touch Provisioning, support from cloud-based Aruba Central, and convenient 1U fixed models, you can quickly set up remote offices with little or no IT support.

管理选择

管理选择

Innovative design supports cloud-based and on-premise management, CLI, and easy-to-use Web GUI with the same hardware, eliminating rip and replace of equipment as network management needs grow.

Secure access

Secure access

保护您的网络并提供认证灵活性，并支持并发IEEE 802.1X，Web或Mac身份验证。

Reliable and secure access

您可以依靠的入门级第2层开关，包括紧凑和无风扇模型，非常适合在安静的工作空间中使用。

Layer 2 Ethernet Switches

增强访问安全性，ACL，流量优先级，SFLOW和IPv6主机支持。

Power over Ethernet

最多370W的POE来支持访问点，IP电话和物联网。

Cloud-based management

Aruba Central提供了全方位服务的AI洞察力，以及校园，分支，远程和数据中心网络的安全和统一的基础设施管理，全部来自一个玻璃窗格。它的网络配置和操作变得简单。

紧凑型模型

Fanless models for quiet operation.

Aruba 2530 Switch系列的详细信息和规格

Specifications

物理接口
  • 2530-48G-poe+开关（J9772A）：
    • 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
    • 4个固定的千兆以太网SFP端口
  • 2530-24G-PoE+ Switch (J9773A):
    • 24注册插孔- 45autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
    • 4个固定的千兆以太网SFP端口
  • 2530-8G-poe+开关（J9774A）：
    • 8 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
    • 2 dual-personality ports; each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-Tx; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or as a SFP slot (for use with SFP transceivers)
  • 2530-48-poe+开关（J9778A）：
    • 48 RJ-45 autosensing 10/100 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: half or full
    • 2 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
    • 2固定千兆以太网SFP港口
  • 2530-24-PoE+ Switch (J9779A):
    • 24注册插孔- 45autosensing 10/100 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3at PoE+); Media Type: Auto-MDIX; Duplex: half or full
    • 2 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
    • 2固定千兆以太网SFP港口
  • 2530-8-PoE+ Switch (J9780A):
    • 8 RJ-45自动启示10/100 POE+端口（IEEE 802.3型10Base-T，IEEE 802.3U型100Base-TX，IEEE 802.3AT POE+）;媒体类型：auto-mdix;双工：一半或满
    • 2 dual-personality ports; each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-Tx; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or as a SFP slot (for use with SFP transceivers) ports
  • 2530-48G开关（J9775A）：
    • 48注册插孔- 45 autosensing 10/100/1000港口(IEEE 802.3Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
    • 4个固定的千兆以太网SFP端口
  • 2530-24G Switch (J9776A):
    • 24注册插孔- 45autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
    • 4个固定的千兆以太网SFP端口
  • 2530-8G Switch (J9777A):
    • 8 RJ-45自动启示10/100/1000端口（IEEE 802.3型10Base-T，IEEE 802.3U型100Base-TX，IEEE 802.3AB类型1000Base-T）;媒体类型：auto-mdix;双工：10BASE-T/100BASE-TX：一半或满；1000Base-T：仅满
    • 2 dual-personality ports; each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-Tx; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or as a SFP slot (for use with SFP transceivers) ports
  • 2530-48 Switch (J9781A):
    • 48 RJ-45 autosensing 10/100 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Duplex: half or full
    • 2 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
    • 2固定千兆以太网SFP港口
  • 2530-24 Switch (J9782A):
    • 24 RJ-45自动启示10/100端口（IEEE 802.3型10BASE-T，IEEE 802.3U型100Base-TX）;双工：一半或满
    • 2 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
    • 2固定千兆以太网SFP港口
  • 2530-8 Switch (J9783A):
    • 8 RJ-45 autosensing 10/100 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Media Type: Auto-MDIX; Duplex: half or full
    • 2 dual-personality ports; each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-Tx; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or as a SFP slot (for use with SFP transceivers) ports
  • 2530-8-poe+内部PS开关（JL070A）：
    • 8 RJ-45自动启示10/100 POE+端口（IEEE 802.3型10Base-T，IEEE 802.3U型100Base-TX，IEEE 802.3AT POE+）;媒体类型：auto-mdix;双工：一半或满
    • 2 dual-personality ports; each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-Tx; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or as a SFP slot (for use with SFP transceivers) ports
Additional ports and slots
  • 1双人格（RJ-45或USB Micro-B）串行控制台端口
内存和处理器
  • ARM9E @ 800 MHz, 128 MB flash
  • 数据包缓冲区大小：3 MB（仅48G开关）或1.5 MB动态分配
  • 256 MB DDR3 DIMM
Dimensions
  • 2530-48G-poe+开关（J9772A）：
    • (H) 4.45 cm x (W) 44.30 cm x (D) 32.26 cm (1.75" x 17.44" x 13.00") (1U height)
    • Weight: 10.4 lb (4.72 kg)
  • 2530-24G-PoE+ Switch (J9773A):
    • (H) 4.45 cm x (W) 44.30 cm x (D) 33.02 cm (1.75" x 17.44" x 13.00") (1U height)
    • Weight: 8.7 lb (3.95 kg)
  • 2530-8G-poe+开关（J9774A）：
    • (H) 4.45 cm x (W) 25.40 cm x (D) 15.95 cm (1.75" x 10.00" x 6.28") (1U height)
    • 重量：2.2磅（1千克）
  • 2530-48-poe+开关（J9778A）：
    • （h）4.45 cm x（w）44.20 cm x（d）32.26 cm（1.75“ x 17.40” x 12.70”）（1U高）
    • 重量：10.1磅（4.58千克）
  • 2530-24-PoE+ Switch (J9779A):
    • （h）4.45 cm x（w）44.20 cm x（d）32.26 cm（1.75“ x 17.40” x 12.70”）（1U高）
    • Weight: 8.4 lb (3.81 kg)
  • 2530-8-PoE+ Switch (J9780A):
    • (H) 4.45 cm x (W) 25.40 cm x (D) 15.95 cm (1.75" x 10.00" x 6.28") (1U height)
    • Weight: 2.0 lb (0.91 kg)
  • 2530-48G开关（J9775A）：
    • (H) 4.45 cm x (W) 44.30 cm x (D) 25.40 cm (1.75" x 17.44" x 10.00") (1U height)
    • Weight: 6.8 lb (3.08 kg)
  • 2530-24G Switch (J9776A):
    • (H) 4.45 cm x (W) 44.30 cm x (D) 25.40 cm (1.75" x 17.44" x 10.00") (1U height)
    • 重量：6.1磅（2.77千克）
  • 2530-8G Switch (J9777A):
    • (H) 4.45 cm x (W) 25.40 cm x (D) 15.95 cm (1.75" x 10.00" x 6.28") (1U height)
    • Weight: 2.0 lb (0.91 kg)
  • 2530-48 Switch (J9781A):
    • (H) 4.45 cm x (W) 44.20 cm x (D) 24.64 cm (1.75" x 17.40" x 9.70") (1U height)
    • Weight: 6.3 lb (2.86 kg)
  • 2530-24 Switch (J9782A):
    • (H) 4.45 cm x (W) 44.20 cm x (D) 24.64 cm (1.75" x 17.40" x 9.70") (1U height)
    • 重量：5.7磅（2.59公斤）
  • 2530-8 Switch (J9783A):
    • (H) 4.45 cm x (W) 25.40 cm x (D) 15.95 cm (1.75" x 10.00" x 6.28") (1U height)
    • Weight: 1.8 lb (0.82 kg)
  • 2530-8-poe+内部PS开关（JL070A）：
    • (H) 4.45 cm x (W) 25.40 cm x (D) 24.59 cm (1.75" x 10.00" x 9.68") (1U height)
    • 重量：4.65磅（2.11千克）
安装和外壳
  • Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available)
  • Horizontal surface mounting
  • 壁挂式
Performance
  • IPv6 Ready Certified
  • MAC address table size: 16000 entries
  • 2530-48G-poe+开关（J9772A）：
    • 100 Mb Latency: < 7.4 µs (LIFO 64-byte packets)
    • 1000 MB延迟：<2.3 µs（LIFO 64字节数据包）
    • 吞吐量：最多77.3 mpp（64字节数据包）
    • Switching capacity: 104 Gbps
  • 2530-24G-PoE+ Switch (J9773A):
    • 100 Mb Latency: < 7.4 µs (LIFO 64-byte packets)
    • 1000 MB延迟：<2.3 µs（LIFO 64字节数据包）
    • Throughput: up to 41.6 Mpps (64-byte packets)
    • 切换容量：56 Gbps
  • 2530-8G-poe+开关（J9774A）：
    • 100 Mb Latency: < 7.4 µs (LIFO 64-byte packets)
    • 1000 Mb Latency: < 2.6 µs (LIFO 64-byte packets)
    • 吞吐量：最多14.8 mpp（64字节数据包）
    • Switching capacity: 20 Gbps
  • 2530-48-poe+开关（J9778A）：
    • 100 Mb Latency: < 6.6 µs (LIFO 64-byte packets)
    • 1000 Mb Latency: < 2.2 µs (LIFO 64-byte packets)
    • Throughput: up to 13 Mpps (64-byte packets)
    • 开关容量：17.6 Gbps
  • 2530-24-PoE+ Switch (J9779A):
    • 100 Mb Latency: < 1.7 µs (LIFO 64-byte packets)
    • 1000 Mb Latency: < 1.1 µs (LIFO 64-byte packets)
    • Throughput: up to 9.5 Mpps (64-byte packets)
    • Switching capacity: 12.8 Gbps
  • 2530-8-PoE+ Switch (J9780A):
    • 100 Mb Latency: < 1.3 µs (LIFO 64-byte packets)
    • 1000 Mb Latency: < 1.3 µs (LIFO 64-byte packets)
    • Throughput: up to 4.1 Mpps (64-byte packets)
    • Switching capacity: 5.6 Gbps
  • 2530-48G开关（J9775A）：
    • 100 Mb Latency: < 7.4 µs (LIFO 64-byte packets)
    • 1000 MB延迟：<2.3 µs（LIFO 64字节数据包）
    • 吞吐量：最多77.3 mpp（64字节数据包）
    • Switching capacity: 104 Gbps
  • 2530-24G Switch (J9776A):
    • 100 Mb Latency: < 7.4 µs (LIFO 64-byte packets)
    • 1000 MB延迟：<2.3 µs（LIFO 64字节数据包）
    • Throughput: up to 41.6 Mpps (64-byte packets)
    • 切换容量：56 Gbps
  • 2530-8G Switch (J9777A):
    • 100 Mb Latency: < 7.4 µs (LIFO 64-byte packets)
    • 1000 Mb Latency: < 2.6 µs (LIFO 64-byte packets)
    • 吞吐量：最多14.8 mpp（64字节数据包）
    • Switching capacity: 20 Gbps
  • 2530-48 Switch (J9781A):
    • 100 Mb Latency: < 6.6 µs (LIFO 64-byte packets)
    • 1000 Mb Latency: < 2.2 µs (LIFO 64-byte packets)
    • Throughput: up to 13 Mpps (64-byte packets)
    • 开关容量：17.6 Gbps
  • 2530-24 Switch (J9782A):
    • 100 Mb Latency: < 1.7 µs (LIFO 64-byte packets)
    • 1000 Mb Latency: < 1.1 µs (LIFO 64-byte packets)
    • Throughput: up to 9.5 Mpps (64-byte packets)
    • Switching capacity: 12.8 Gbps
  • 2530-8 Switch (J9783A):
    • 100 Mb Latency: < 1.3 µs (LIFO 64-byte packets)
    • 1000 Mb Latency: < 1.3 µs (LIFO 64-byte packets)
    • Throughput: up to 4.1 Mpps (64-byte packets)
    • Switching capacity: 5.6 Gbps
  • 2530-8-poe+内部PS开关（JL070A）：
    • 100 Mb Latency: < 1.3 µs (LIFO 64-byte packets)
    • 1000 Mb Latency: < 1.3 µs (LIFO 64-byte packets)
    • Throughput: up to 4.1 Mpps (64-byte packets)
    • Switching capacity: 5.6 Gbps
Environmental
  • Operating temperature range: 0°C to 45°C (32°F to 113°F)
  • Operating relative humidity: 15% to 95% @ 40°C (104°F), noncondensing
  • 存储温度范围：-40°C至70°C（-40°F至158°F）
  • Storage humidity: 15% to 90% @ 65°C (149°F), non-condensing
  • 操作高度：10,000英尺（3公里）
  • Acoustic:See data sheet
电气特性
Safety certifications
  • UL 60950-1
  • CAN/CSA 22.2 No. 60950-1
  • IEC 60950-1
  • EN 60950-1
  • EN 60825
Emissions
  • FCC A类
  • EN 55022/CISPR-22 Class A
  • VCCI A类
Immunity
  • Generic/EN: EN 55024, CISPR 24
  • ESD: IEC 61000-4-2
  • Radiated: IEC 61000-4-3
  • EFT/爆发：IEC 61000-4-4
  • Surge: IEC 61000-4-5
  • 进行：IEC 61000-4-6
  • Power frequency magnetic field: IEC 61000-4-8
  • Voltage dips and interruptions: IEC 61000-4-11
  • Harmonics: EN 61000-3-2, IEC 61000-3-2
  • Flicker: EN 61000-3-3, IEC 61000-3-3
Additional specifications
