阿鲁巴203H Series Indoor Hospitality Wi-Fi 5 Access Point
This compact and cost-effective Wi-Fi 5 access point is ideal for branch offices and hospitality. Highly secure, the 203H ensures corporate applications work remotely without disruption.
A Wi-Fi experience designed for remote workers
This cost-effective and secure access point offers wired and wireless options with the ability to choose deployment and operating modes.
Cost-effective access points for work from anywhere
Cost-effective access points for work from anywhere
The compact and efficient 203H Series Wi-Fi 5 standards APs deliver reliable and secure connectivity while minimizing costs and complexity.
提高功耗
提高功耗
Powered by PoE, the 203H Series APs minimize power consumption. It facilitates a highly efficient and reliable wireless network, while offering wireless and wired access in a single compact device.
Highly secure and reliable
Highly secure and reliable
Integrated wireless intrusion, IP reputation, and security services identify, classify, and block malicious files, URLs, and IPs providing comprehensive protection against advanced online threats.
选择您的部署和操作模式
选择您的部署和操作模式
灵活的203H系列AP可以使用现有的结构化电缆系统轻松壁挂式安装，或使用可选的桌子安装套件转换为台式访问点。它也可以以基于控制器或无控制器的部署模式部署。
802.11ac access point that’s ideal for remote work
Secure and fast, the 203H Series APs provide cost-effective network access to corporate resources for branch offices and hospitality.
Flexible radio architecture
可配置的软件可在1x1双收音机模式或2x2单个无线电双波段模式下运行。
Supports up to 867Mbps in the 5GHz band (with 2SS/VHT80 clients) or up to 400Mbps in the 2.4 GHz band (with 2SS/VHT40 clients). In 1x1 dual radio mode, these max speeds are up to 433Mbps (5GHz) and 200Mbps (2.4GHz).
最小化RF干扰手臂
Adaptive Radio Management (ARM) technology automatically assigns channel and power settings, provides airtime fairness, and ensures that access points stay clear of all sources of RF interference to deliver reliable, high-performance WLANs.
基于策略的访问控制
Dynamic Segmentation enforces real-time, device-level access policies on Aruba wired and wireless networks.
Intelligent app visibility with AppRF
AppRF technology leverages deep packet inspection to classify and block, prioritize, or limit bandwidth for thousands of applications in a range of categories.

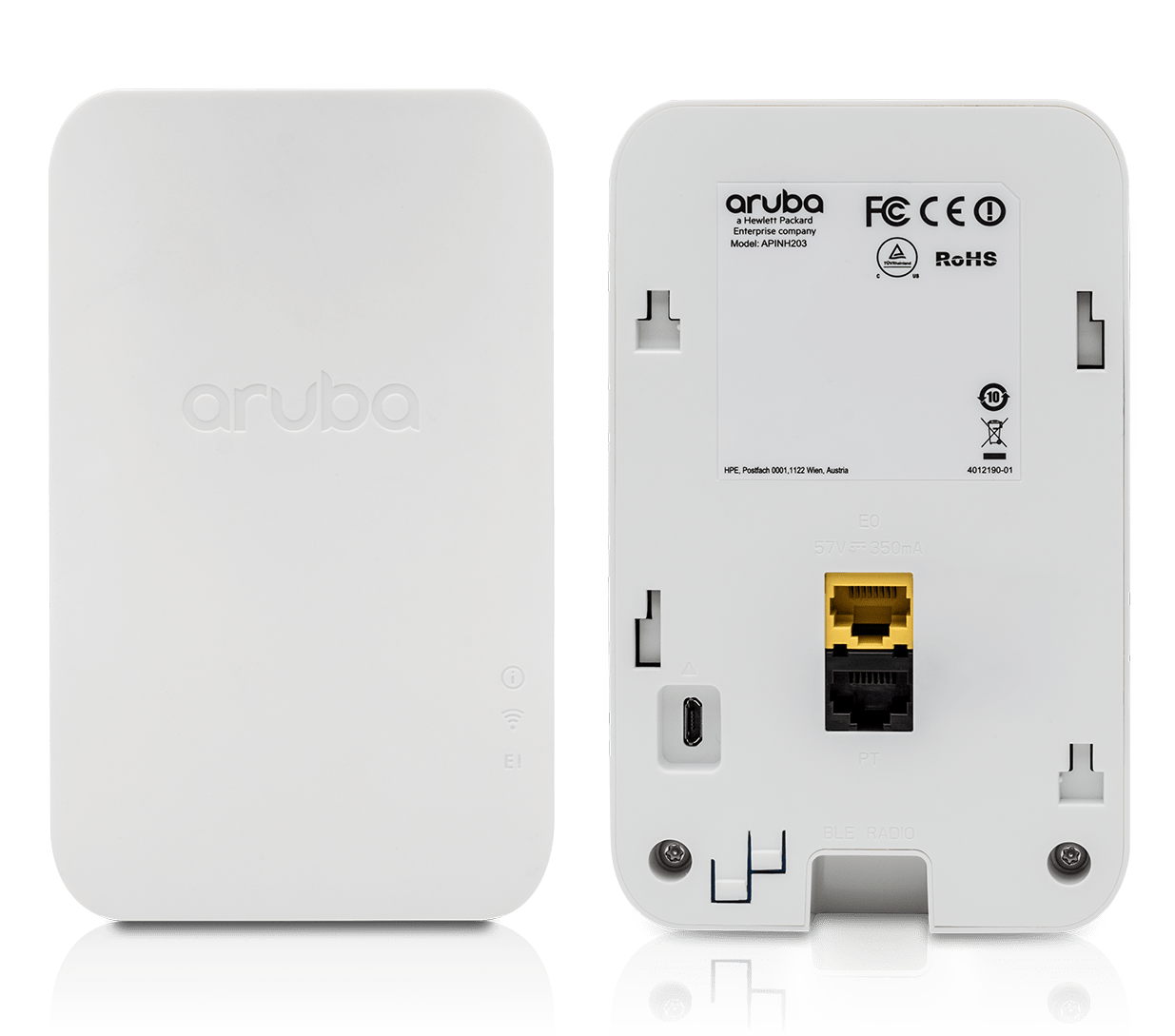

Details and specifications for the Aruba 203H Series APs
Specifications
-
AP-203H Series Specifications - Unified flexible radio 802.11ac 2x2:2SS hospitality and branch AP with internal antennas
- 支持壁箱和桌子安装部署
Wi-Fi Antennas - 两个集成的双波段中等方向天线，用于2x2 MIMO，最大的单个天线增益为4.9dbi，为2.4GHz，5GHz为6.0dbi。内置天线已优化用于AP的垂直方向。水平梁宽大约为120度。
- 结合了MIMO无线电的每个天线的模式（以2x2模式），有效的人均模式的峰值增益为2.3dbi，在2.4GHz中为2.3dbi，在5GHz中为3.4dbi。
其他接口 - Uplink: 10/100/1000BASE-T Ethernet (RJ-45, back)
- 自动传感链路速度和MDI/MDX
- 802.3AZ节能以太网（EEE）
- POE-PD（输入）：48 VDC（名义）802.3AF/POE
- Local: 10/100/1000BASE-T Ethernet (RJ-45, bottom)
- 自动传感链路速度和MDI/MDX
- 802.3AZ节能以太网（EEE）
- 被动通过接口（两个RJ-45，背部和底部）
- USB host interface (Type A connector)
- For Aruba LS-BT1USB BLE radio modules only
- 视觉指示器（LED）：
- 电力/系统状态
- Radio status
- Local network port status
- 重置/LED控制按钮（“回形针访问”）
- 工厂复位(当激活during device power up)
- LED control: toggle off/normal
- 串行控制台接口(custom, uUSB physical jack)
-
加密的吞吐量 - Maximum IPsec encrypted wired throughput: 20Mbps
Power Sources and Consumption - 美联社通过对以太网的力量（POE）供电
- 可选的POE电源喷油器分别出售
- Power over Ethernet (PoE): 48 Vdc (nominal) 802.3af/802.3at compliant source
- Maximum (worst-case) power consumption: 7.4W.
- Includes up to 100mW for an attached USB BLE module
- Maximum (worst-case) power consumption in idle mode: 3.9W.
Mounting - The AP ships with a mounting plate to attach the AP to a single-gang wall-box (most international variations covered). The AP securely attaches to the plate; a custom security tool to remove the AP from the plate ships with the product.
- Several optional mount kits are available to attach the AP to a dual-gang wall-box, directly to the wall, or to support desk mounting.
Mechanical - Dimensions/weight (unit,including single-gang wall box mount plate):
- 86mm (W) x 26.5mm (D) x 140mm (H)
- 225g
- Dimensions/weight (shipping):
- 115mm (W) x 47mm (D) x 165mm (H)
- 290g
环境的 - Operating:
- 温度：0°C至 +40°C（ +32°F至 +104°F）
- Humidity: 5% to 93% non-condensing
- Storage and transportation:
- Temperature: -40° C to +70° C (-40° F to +158° F)
监管 - FCC /加拿大行业
- CE Marked
- R&TTE Directive 1995/5/EC
- 低压指令72/23/EEC
- EN 300 328
- EN 301 489
- EN 301 893
- UL/IEC/EN 60950
- EN 60601-1-1 and EN 60601-1-2
有关更多特定于国家 /地区的监管信息和批准，请参阅您的Aruba代表。
Reliability - MTBF: 780,000 hours (89 years) at +25C° operating temperature
监管Model Number - AP-203H-xx (all variants): APINH203
Certifications - CB Scheme Safety, cTUVus
- UL2043全体评级
- Wi-Fi Alliance（WFA）认证802.11A/B/G/N/AC
Warranty Minimum Software Version - 阿鲁巴OS™ 6.5.2.0/8.2.0.0
- 阿鲁巴InstantOS™ 6.5.3.0/8.2.0.0
Work remotely with secure, always-on connectivity
Related products
查找有关Aruba产品的信息，这些信息补充和支持203H系列AP或其他更适合您需求的解决方案。
303H Series AP
This cost-effective Wi-Fi 5 (Wave 2) access point offers a flexible, secure solution that is ideal for hospitality, branch offices, medical clinics, and remote workstations.

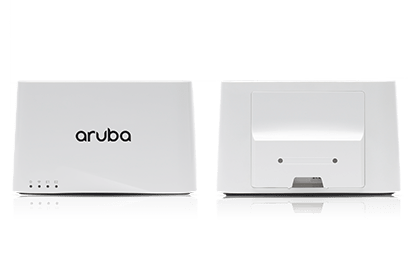

203R Series AP
