Static VXLAN with multiple VNIs between two VTEPs

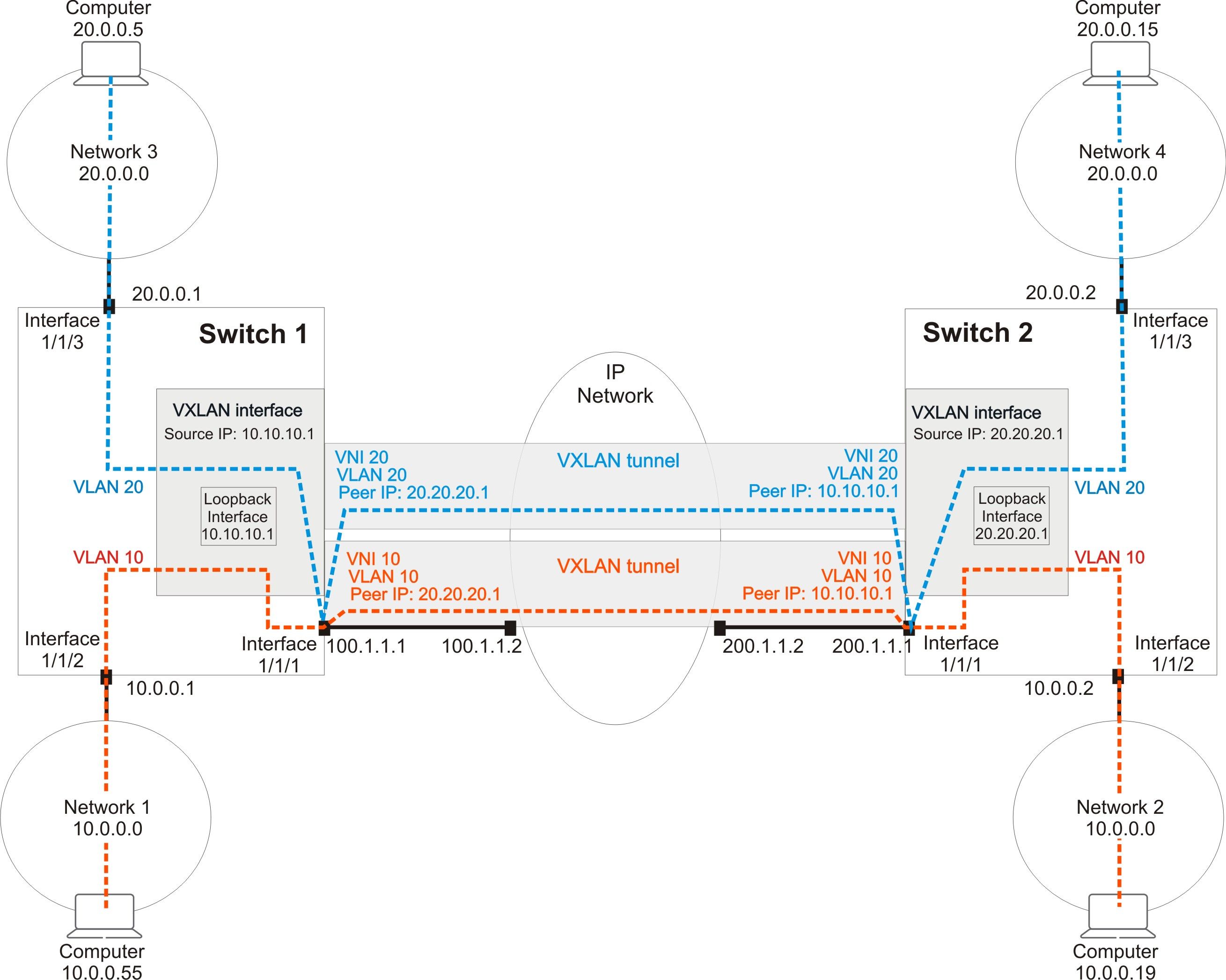

This example creates two static VXLAN tunnels between two switches, enabling traffic from two networks to traverse underlay IP network.

Procedure
  1. On switch 1:
    1. Enable loopback interface1and assign the IP address10.10.10.1/24to it.
      switch#configswitch(config)#interface loopback 1switch(config-loopback-if)#ip address 10.10.10.1/24switch(config-if)#exitswitch(config)#
    2. Enable interface1/1/1and assign the IP address100.1.1.1/24to it.
      switch#configswitch(config)#interface 1/1/1switch(config-if)#routing(6300/6400 only)switch(config-if)#ip address 100.1.1.1/24switch(config-if)#no shutdownswitch(config-if)#exitswitch(config)#
    3. Create VLAN10and VLAN20.
      switch(config)#vlan 10,20switch(config-vlan-10)#exit
    4. Enable interface1/1/2and assign VLAN10to it.
      switch(config)#interface 1/1/2switch(config-if)#no shutdownswitch(config-if)#no routing(8325/8360/8400 only)switch(config-if)#vlan access 10switch(config-if)#exitswitch(config)#
    5. Enable interface1/1/3and assign VLAN20to it.
      switch(config)#interface 1/1/3switch(config-if)#no shutdownswitch(config-if)#no routing(8325/8360/8400 only)switch(config-if)#vlan access 20switch(config-if)#exitswitch(config)#
    6. Create VXLAN interface 1 and assign the source IP address10.10.10.1to it.
      switch(config)#interface vxlan 1switch(config-vxlan-if)#源ip 10.10.10.1switch(config-vxlan-if)#no shutdown
    7. Create VNI10和屁股ign the VTEP peer address20.20.20.1and VLAN10to it.
      switch(config-vxlan-if)#vni 10开关(config-vni) #vtep-peer 20.20.20.1开关(config-vni) #vlan 10开关(config-vni) #exitswitch(config-vxlan-if)#exit
    8. Create VNI20和屁股ign the VTEP peer address20.20.20.1and VLAN20to it.
      switch(config-vxlan-if)#vni 20开关(config-vni) #vtep-peer 20.20.20.1开关(config-vni) #vlan 20开关(config-vni) #exitswitch(config-vxlan-if)#exitswitch(config)#
  2. On switch 2:
    1. Enable loopback interface2and assign the IP address20.20.20.1/24to it.
      switch#configswitch(config)#interface loopback 2switch(config-loopback-if)#ip address 20.20.20.1/24switch(config-if)#exitswitch(config)#
    2. Enable interface1/1/1and assign the IP address200.1.1.1/24to it.
      switch#configswitch(config)#interface 1/1/1switch(config-if)#routing(6300/6400 only)switch(config-if)#ip address 200.1.1.1/24switch(config-if)#no shutdownswitch(config-if)#exitswitch(config)#
    3. Create VLAN10and VLAN20.
      switch(config)#vlan 10,20switch(config-vlan-10)#exit
    4. Enable interface1/1/2and assign VLAN10to it.
      switch(config)#interface 1/1/2switch(config-if)#no shutdownswitch(config-if)# norouting(8325/8360/8400 only)switch(config-if)#vlan access 10switch(config-if)#exitswitch(config)#
    5. Enable interface1/1/3and assign VLAN20to it.
      switch(config)#interface 1/1/3switch(config-if)#no shutdownswitch(config-if)# norouting(8325/8360/8400 only)switch(config-if)#vlan access 20switch(config-if)#exitswitch(config)#
    6. Create VXLAN interface 1 and assign the source IP address20.20.20.1to it.
      switch(config)#interface vxlan 1switch(config-vxlan-if)#source ip 20.20.20.1switch(config-vxlan-if)#no shutdown
    7. Create VNI10和屁股ign the VTEP peer address10.10.10.1and VLAN10to it.
      switch(config-vxlan-if)#vni 10开关(config-vni) #vtep-peer 10.10.10.1开关(config-vni) #vlan 10开关(config-vni) #exitswitch(config-vxlan-if)#exit
    8. Create VNI20和屁股ign the VTEP peer address10.10.10.1and VLAN20to it.
      switch(config-vxlan-if)#vni 20开关(config-vni) #vtep-peer 10.10.10.1开关(config-vni) #vlan 20开关(config-vni) #exitswitch(config-vxlan-if)#exitswitch(config)#
