Static VXLAN with a single VNI between two VTEPs

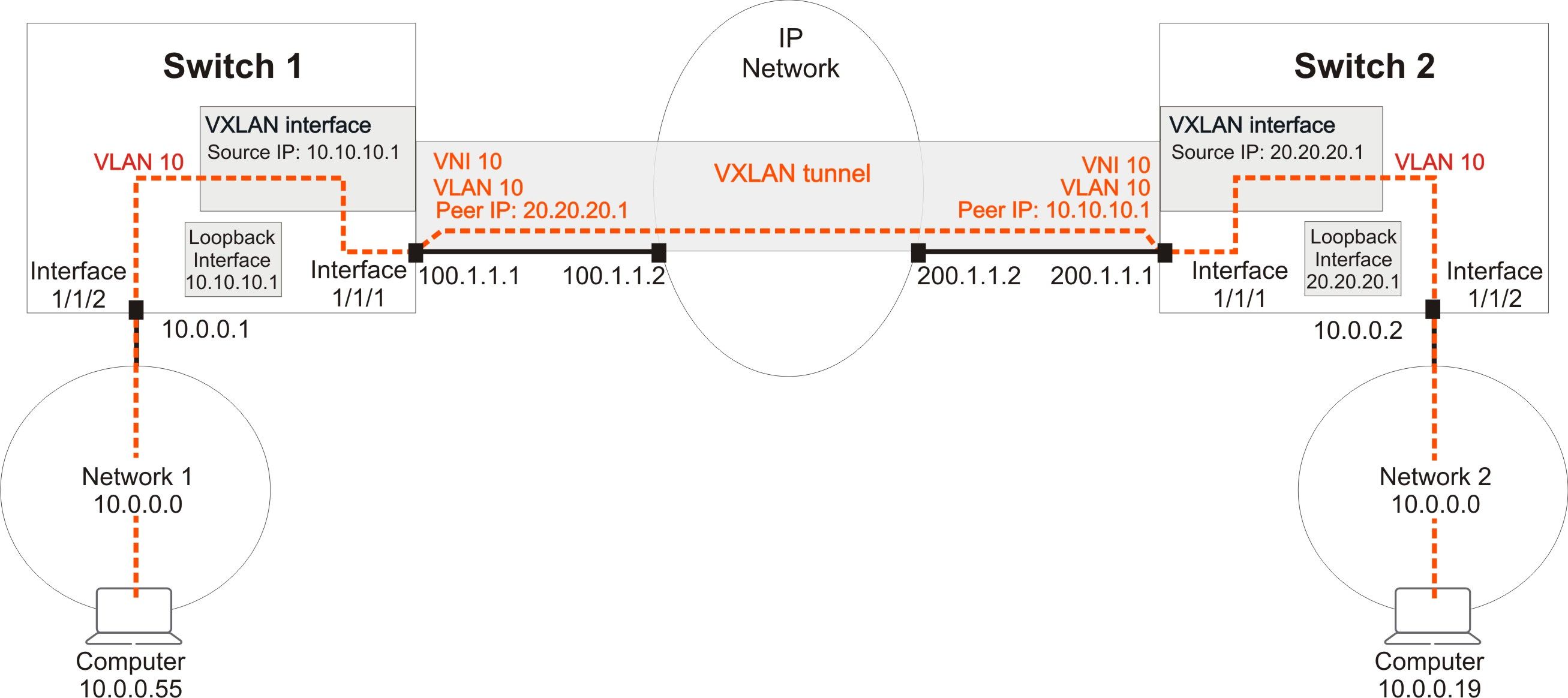

This example creates a static VXLAN tunnel between two switches, enabling traffic from two networks to traverse an underlay IP network.

Procedure
  1. On switch 1:
    1. Enable loopback interface1and assign the IP address10.10.10.1/24to it.
      switch#configswitch(config)#interface loopback 1switch(config-loopback-if)#ip address 10.10.10.1/24switch(config-if)#exitswitch(config)#
    2. Enable interface1/1/1and assign the IP address100.1.1.1/24to it.
      switch(config)#interface 1/1/1switch(config-if)#routing(6300/6400 only)switch(config-if)#ip address 100.1.1.1/24switch(config-if)#no shutdownswitch(config-if)#exitswitch(config)#
    3. Create VLAN10.
      switch(config)#vlan 10switch(config-vlan-10)#exit
    4. Enable interface1/1/2and assign VLAN10to it.
      switch(config)#interface 1/1/2switch(config-if)#no shutdownswitch(config-if)#no routing(8325/8360/8400 only)switch(config-if)#vlan access 10switch(config-if)#exit
    5. Create VXLAN interface 1 and assign the loopback source IP address10.10.10.1to it.
      switch(config)#interface vxlan 1switch(config-vxlan-if)#源ip 10.10.10.1switch(config-vxlan-if)#no shutdown
    6. Create VNI10和屁股ign the VTEP peer address20.20.20.1and VLAN10to it.
      switch(config-vxlan-if)#vni 10开关(config-vni) #vtep-peer 20.20.20.1开关(config-vni) #vlan 10开关(config-vni) #exitswitch(config-vxlan-if)#exit
    7. Add a route to the peer VTEP peer address20.20.20.1.
      switch(config)#ip route 20.20.20.1 100.1.1.2
  2. On switch 2:
    1. Enable loopback interface2and assign the IP address20.20.20.1/24to it.
      switch#configswitch(config)#interface loopback 2switch(config-loopback-if)#ip address 20.20.20.1/24switch(config-if)#exitswitch(config)#
    2. Enable interface1/1/1and assign the IP address200.1.1.1/24to it.
      switch#configswitch(config)#interface 1/1/1switch(config-if)#routing(6300/6400 only)switch(config-if)#ip address 200.1.1.1/24switch(config-if)#no shutdownswitch(config-if)#exit
    3. Create VLAN10.
      switch(config)#vlan 10switch(config-vlan-10)#exit
    4. Enable interface1/1/2and assign and VLAN10to it.
      switch(config)#interface 1/1/2switch(config-if)#no shutdownswitch(config-if)#no routing(8325/8360/8400 only)switch(config-if)#vlan access 10switch(config-if)#exit
    5. Create VXLAN interface 1 and assign the source IP address20.20.20.1to it.
      switch(config)#interface vxlan 1switch(config-vxlan-if)#source ip 20.20.20.1switch(config-vxlan-if)#no shutdown
    6. Create VNI10和屁股ign the VTEP peer address10.10.10.1and VLAN10to it.
      switch(config-vxlan-if)#vni 10开关(config-vni) #vtep-peer 10.10.10.1开关(config-vni) #vlan 10开关(config-vni) #exitswitch(config-vxlan-if)#exitswitch(config)#
    7. Add a route to the peer VTEP peer address10.10.10.1.
      switch(config)#ip route 10.10.10.1 200.1.1.2
