Getting Started

管弦乐队enables you to globally monitor performance and manage EdgeConnect (EC) appliances, whether you are configuring a WAN Optimization network (NX, VX, or VRX appliances) or an SD-WAN network (EC or EC-V appliances).

On this page:

• 支持的浏览器
• 创建密码的指南
• SD-WAN先决条件的概述

支持的浏览器

乐队和设备Web用户界面支持以下浏览器：

• Google Chrome（推荐）
• Microsoft Edge
• Mozilla Foxfire
• 歌剧
• Safari

我们建议您使用可用于浏览器的最新版本。

创建密码的指南

• 密码至少应为八个字符。
• 至少应该有一个较低的案例字母和一个上部案例字母。
• 至少应该有一个数字。
• There should be at least one special character.
• Consecutive letters in the password should not be dictionary words.

SD-WAN先决条件的概述

使用编排器，您可以创建虚拟网络叠加层，以将业务意图应用于网络段。通过应用配置文件来管理设备。

• Interface Labels associate each interface with a use.

  • 局域网labels refer to traffic type, such asvoip,数据, or复制.
  • WANlabels refer to the service or connection type, such asMPLS,internet, orVerizon.

• 部署配置文件配置接口并将标签映射到它们，以表征设备。

• Business Intent Overlaysuse the Labels specified in Deployment Profiles to define how traffic is routed and optimized between sites. These overlays can specify preferred paths and can link bonding policies based on应用,Vlan, or子网, independent of the brand and physical routing attributes of the underlay.

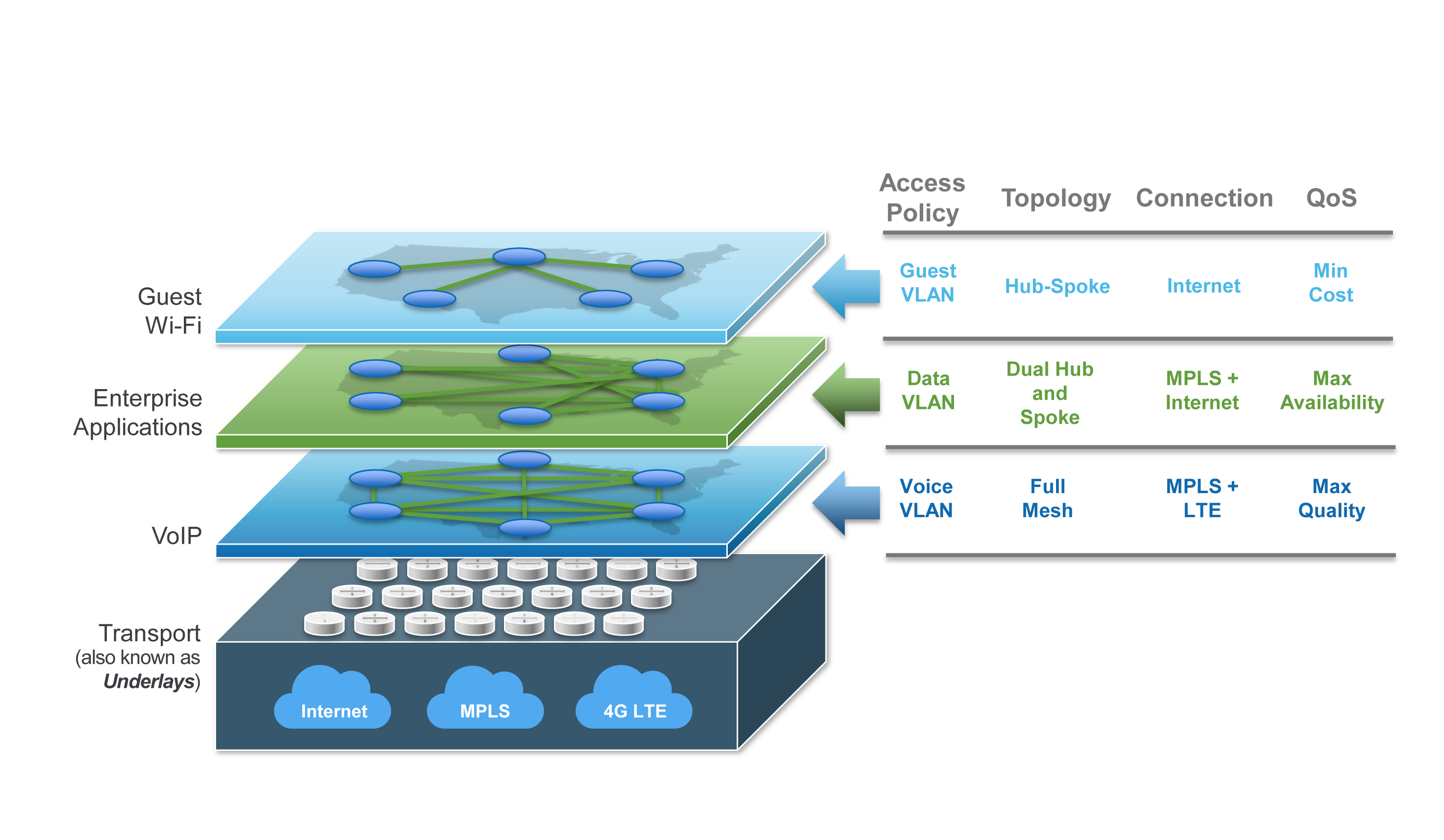

  This diagram shows the basic architecture and capabilities of覆盖.



Including a new appliance into the SD-WAN fabric consists of two basic steps:

1. Registration and discovery.在你之后接受发现的设备，配置向导opens.
2. 供应。由于向导会提示您选择配置文件，因此更容易提前创建这些配置文件。

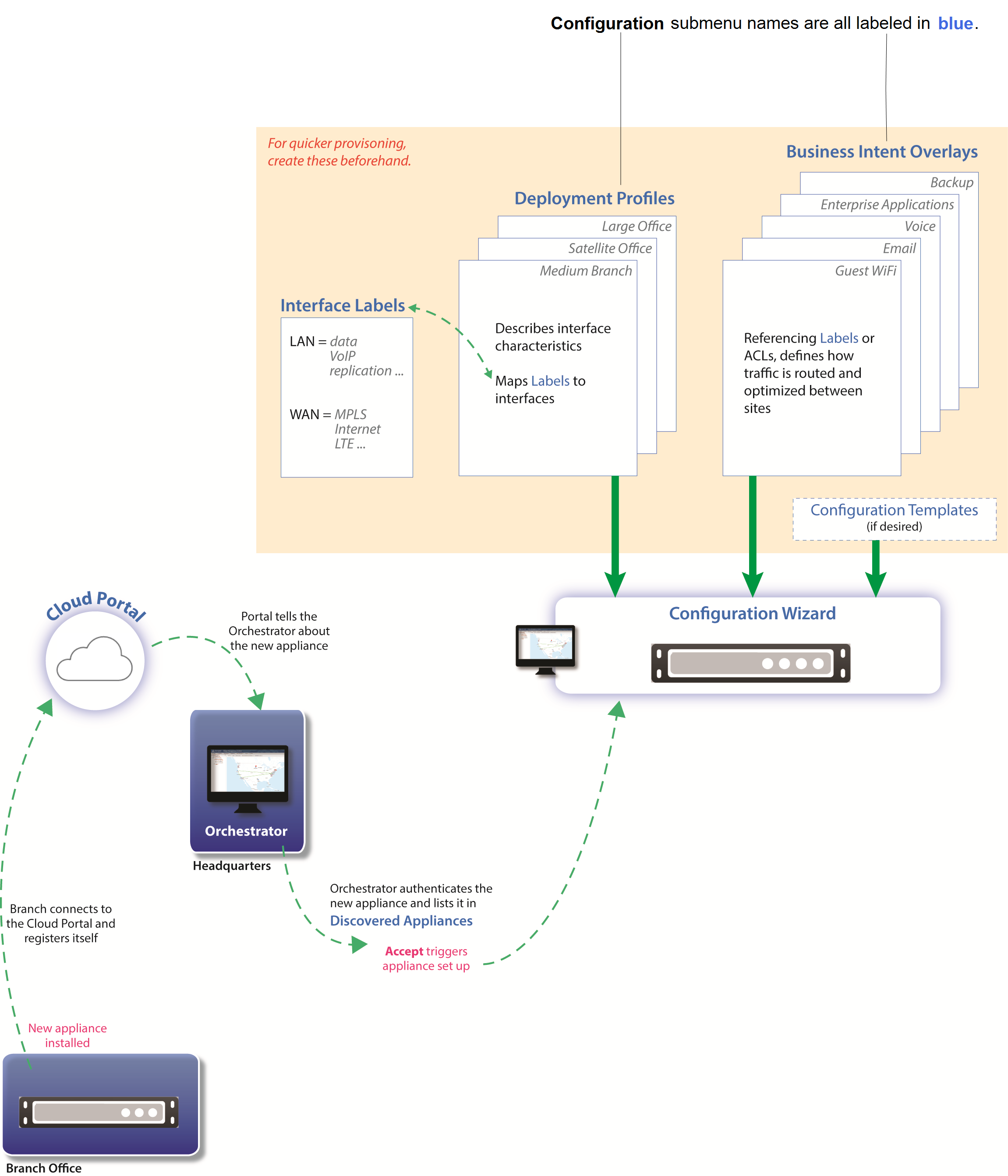

The following figure shows the process of installing and provisioning an appliance for SD-WAN.

---
