健康图

监视>摘要>健康图

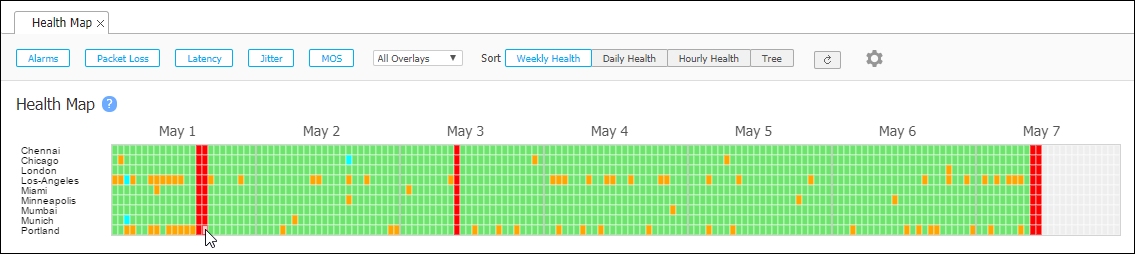

The健康图provides a high-level view of your network’s health, based on real-time measurements of network conditions between appliances.

• 视图过滤器可用于警报，数据包丢失，延迟，抖动，MOS（平均意见分数）和业务意图覆盖。

• The health map can be sorted by weekly, daily, hourly health, or tree (by group, and then alphabetical by hostname).

• 每个块代表一个小时，并使用颜色编码来显示所选过滤器中最严重的事件。颜色代码对应于警报的严重性和阈值。

  • 绿色的- 普通手术。

  • Red– Critical. Steps must be taken immediately in order to restore the affected service.

  • 橙子– Major. Steps must be taken as soon as possible because the affected service has degraded drastically.

  • 黄色- 次要的。一个尚未影响服务的问题，但如果没有纠正该问题。

  • Aqua- 警告。可能影响服务的潜在问题。

  • Grey- 没有可用数据。

• 可以通过单击齿轮图标来配置阈值.

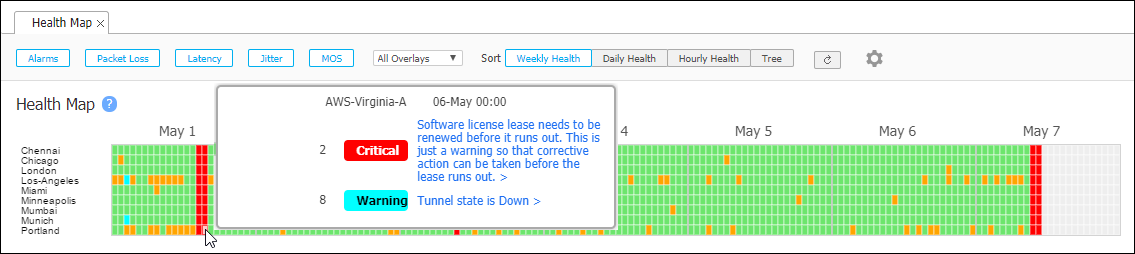

• 单击“色块”显示一个弹出窗口，其中包含有关该事件的细节，什么值触发了该事件以及在同一小时内对该设备的任何其他阈值漏洞。



• While filter and sort order customizations persist for each user account, threshold settings apply globally.

• 阈值设置不是追溯的。设置新阈值不会基于新编辑的值重新播放历史数据。

• Deleting an appliance deletes its data.

• If you are using overlays, note the following:

  • 您可以单独查看每个覆盖层的健康。

  • If you remove an individual overlay, its data is not recoverable. However, its historical data remains included in叠加.

---
