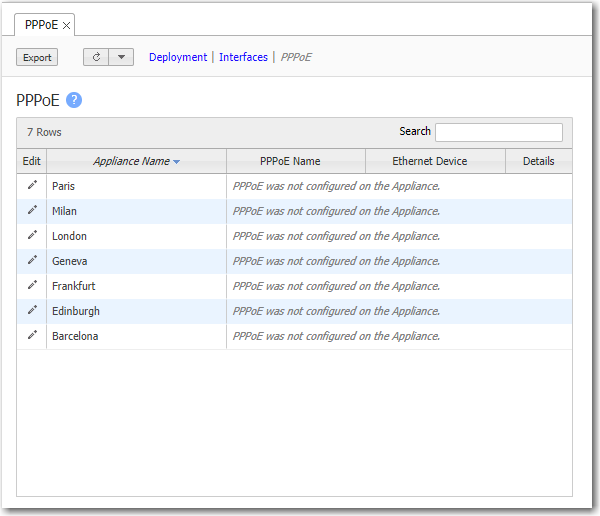

PPPOE选项卡
配置>网络> PPPOE
以太网上的点对点协议（pppoe) is a network protocol for encapsulating PPP frames inside Ethernet frames. It is used mainly with DSL services where individual users connect to a DSL modem over Ethernet.

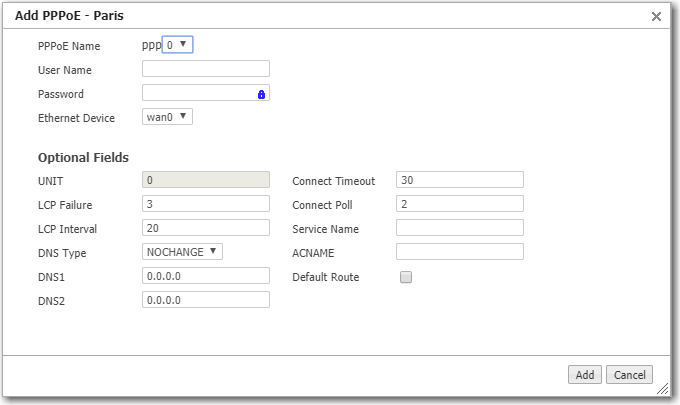

配置PPPOE连接时，请完成以下字段：
| 场地 | Description |
|---|---|
| 以太网设备 | 指定用于发送协议的物理接口。通常，这是WAN端接口。 |
| Password | This is set up with your Internet Service Provider (ISP). |
| pppoe名称 | Name ispppfollowed by a numerical suffix from0to9。 |
| 用户名 | This is set up with your Internet Service Provider (ISP). |
一般来说,这是所需的所有配置。If your ISP is fine-tuning the access, you might be asked to configure some of theOptional Fields， 以下。
| 场地 | Description |
|---|---|
| ACNAME | Access Concentrator Name. Provided by the ISP. |
| 连接民意调查 | 指定尝试建立链接的次数。默认值是2。 |
| Connect Timeout | 在尝试建立链接时，它指定了多少秒钟，直到努力耗尽为止。默认值是30秒。 |
| Default Route | If the check box is selected, the connection uses the default gateway provided by the ISP. |
| DNS类型 | This specifies the resolver to use: 没变– Do not accept or configure the ISP’s Domain Name Server (DNS). Use the DNS configured on theAdministration > General Settings > Setup > DNStab. SERVER– Accept the ISP’s DNS. This then overrides the Silver Peak DNS configuration. SPECIFY– UseDNS1和DNS2to resolve domain names. |
| LCP失败 | 链接控制协议故障。指定在链接降低之前，保留的次数可能会发生故障。默认值是3。 |
| LCP Interval | 此保持隔离间隔的默认值为20秒。 |
| Service Name | Provided by the ISP. |
