Reboot or Shut Down an Appliance

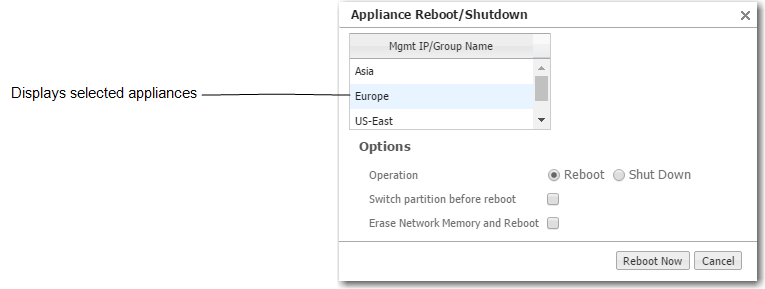

Administration > Tools > Reboot > Appliance Reboot / Shutdown

The appliance supports three types of reboot:

• Reboot: Reboots the appliance gracefully. This is your typical “vanilla” restart.

  Use case: You are changing the deployment mode or other configuration parameters that require a reboot.

• Erase Network Memory and Reboot: Erases the Network Memory cache and reboots the appliance.

  Use case: You need to restart the appliance with an empty Network Memory cache.

• Shutdown:关闭电器,关机. To restart, go to the appliance and physically turn the power on with the Power switch.

  Use cases:

  • You are decommissioning the appliance.

  • You need to physically move the appliance to another location.

  • You need to re-cable the appliance for another type of deployment.

Behavior During Reboot

A physical appliance enters into one of the following states:

• hardware bypass, if deployed in-line (Bridge mode)

• open-port state, if deployed out-of-path (Router mode or Server mode)

Unless a virtual appliance is configured for a high availability deployment, all flows are discontinued during reboot.

---
